Note: This product needs you to install the GSM/GPRS card, only works with 2G.
It also needs connect with 12V External battery or it will show low battery: The green indicator light flashes, then stays solid for a while and then flashes again (see picture below).
User mobile App:
Scan the QR code to install the applictions on your mobile

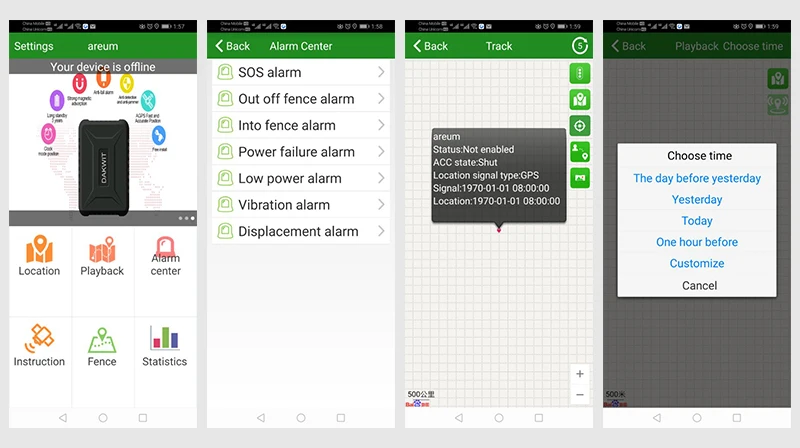

Platform:
How to add the imei to the account :
Applications:
Vehicle leasing, fleet management and more
Motorcycle, scooter, bike anti-theft
Motorcycle, scooter, bike real-time tracking
Manage personnel
Main functions:
1.GSM quad-band frequency
2.Real time tracking by SMS/GPRS
3.Recover original password

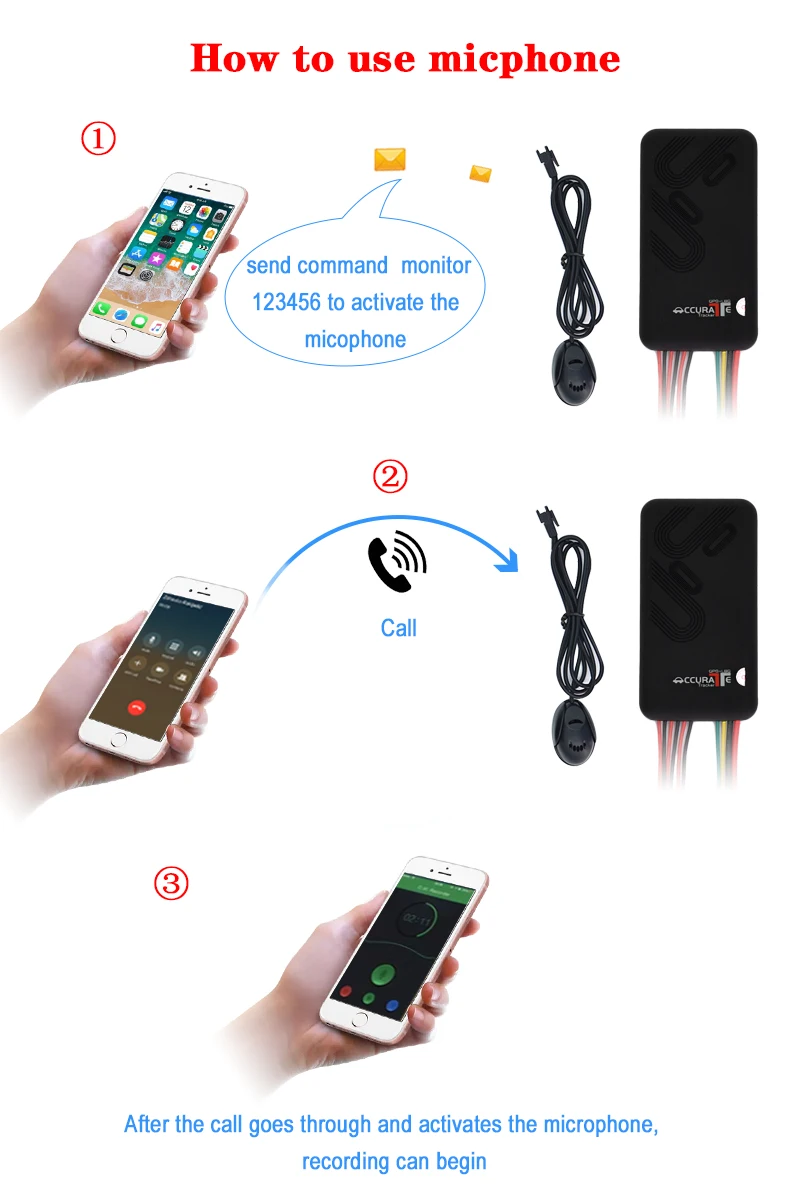

4.Real time voice monitoring
5.Overspeed alarm
6.ACC- anti theft alarm
7.SOS alarm
8.Built-in backup battery to realize failure alarm
9.Cut vehicle oil or circuir( optional)
Remark:
Storage Temperature: -40 to 85 Deg.C
Operation Temperature: -20 to 55 Deg.C
Humidity: 5 - 95 percent
Type: GPS, Tracker

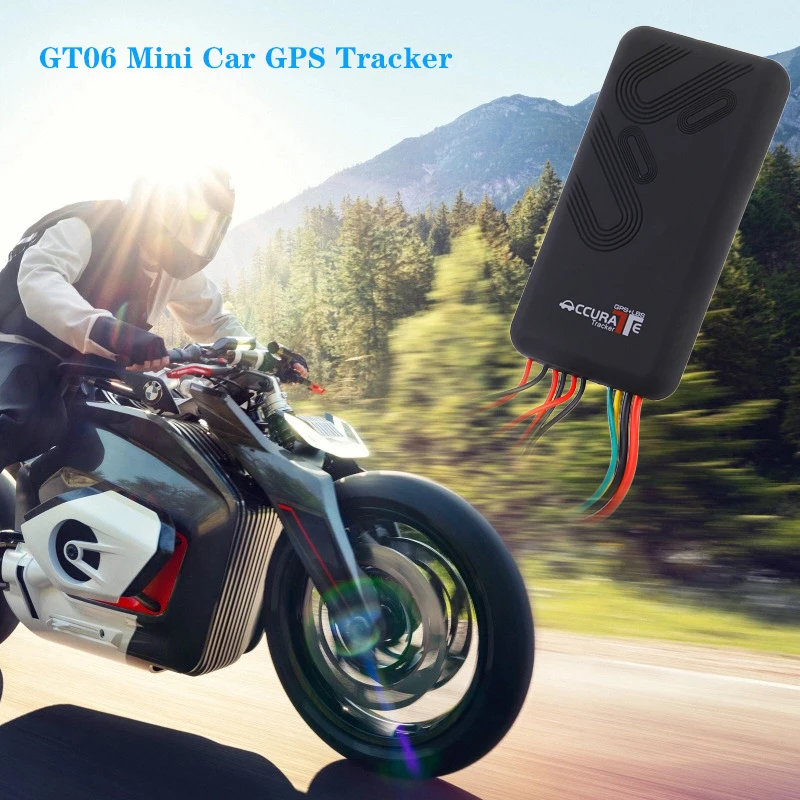

Model : GT06
GPS Bands : GSM 850/900/1800/1900MHz
Network : GSM, GPRS
Voltage Range : 12V - 24V
GPS Sensitivity: - 159 dBm
GPS Start Time: Cold status:45s, Warm status:35s, Hot status:1s
GPS Positioning Precision : 5M
Package weight: 0.111 kg
Product size (L x W x H) : 9.8 x 5 x 1.3 cm / 3.85 x 1.97 x 0.51 inches
Package size (L x W x H) : 10 x 6 x 2 cm / 3.93 x 2.36 x 0.79 inches
Package included:
1 x GT06 GPS SMS GPRS Vehicle Tracker Locator Remote Control Alarm
1 x Power wire
1 x SOS wire
1 x Microphone
1 x Relay
1 x User Manual In English and Chinese
Command list:
|
NAME
|
COMMAND
|
FOR EXAMPLE
|
reply
|
|
Initialization
|
begin+password
|
begin123456
|
begin ok
|
|
Set GMT time zone number
|
time zone+password+space+local time zone
|
time zone123456 8
|
time zone OK
|
|
set authorized number
|
admin+password+space+phone umber
|
admin123456 13813813813
|
admin ok
|
|
cancel authorized number
|
noadmin+password+space+phone umber
|
noadmin123456 13813813813
|
noadmin OK
|
|
SOS alarm
|
long press the SOS,After set up the authorization number
|
|
|
|
route record
(need tf card)
|
gpx+password
t001m***n+password
|
Gpx123456
t001m***n123456
|
Gpx ok
tn ok
|
|
battery check
|
check+password
|
check123456
|
|
|
IMEI check
|
IMEI+password
|
IMEI123456
|
IMEI number
|
|
Switch to the SMS mode
|
SMS+password
|
SMS123456
|
SMS Ok
|
|
Switch to the GPRS mode
|
gprs+password
|
gprs123456
|
GPRS OK
|
|
change password
|
password+old pass+space+new pass
|
password123456 888888
|
password ok
|
|
Restore default Settings
|
reset+password
|
reset123456
|
reset ok
|
